Precision Linear Scale Encoder Thin High Precision 0.005mm Slim Linear Scale 50 100 150 200 250 300 350 400mm 20x28mm Small Encoder Grating Ruler Sensor for CNC(White 270mm Travel Length)

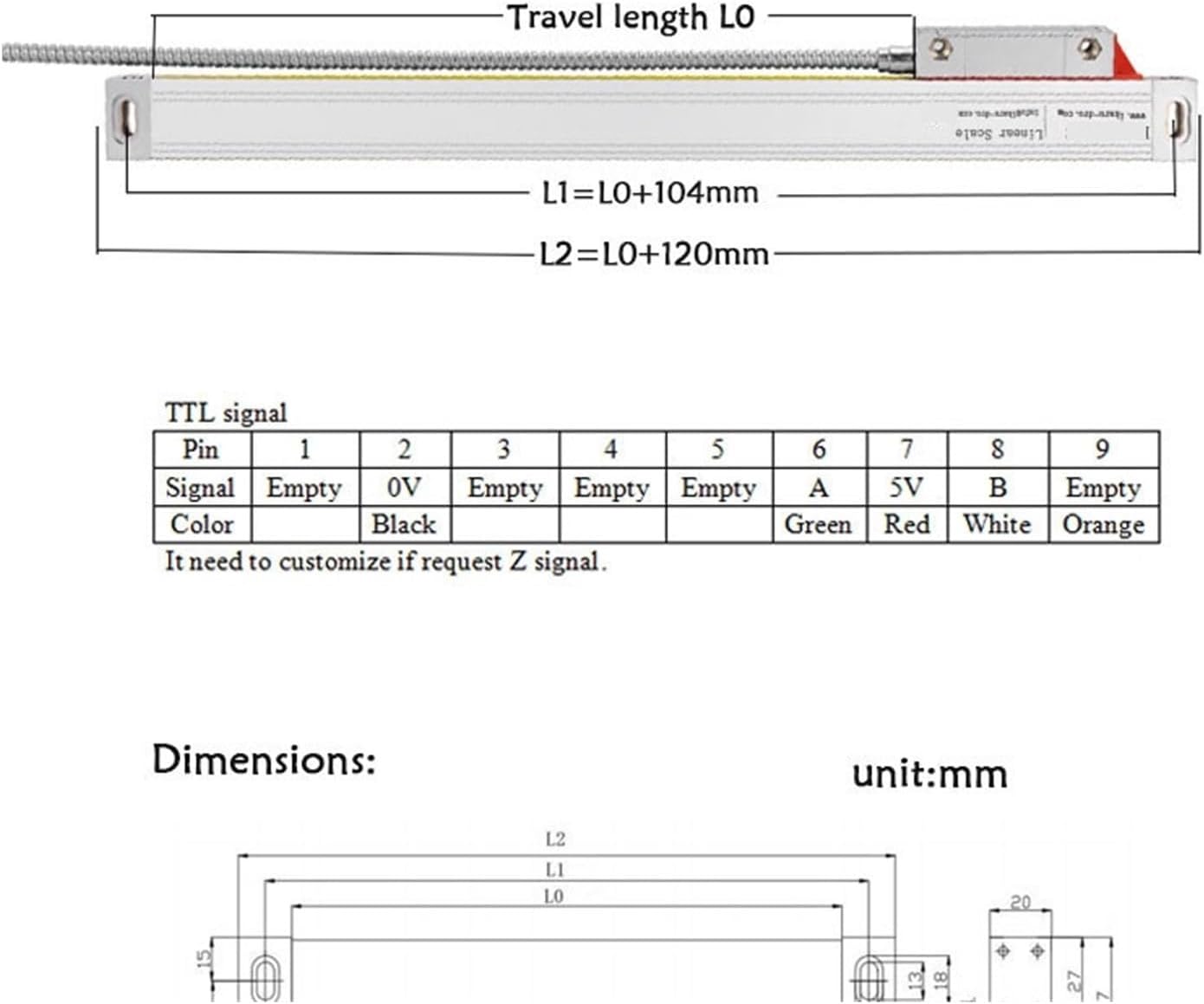

5 Micron Linear Scale/Linear Encoder Specifications 1. Travel (measuring) length: 120/170/220/270/320/370/420mm 2. Total (overall) length: Travel length + 120mm 3. Resolution: 0.005mm 4. Input voltage: 5V 5. Output signal:TTL Tips: There are two types lable of the scale, one is 50mm,100mm,150mm,200mm etc , and another one is 70mm,120mm,170mm,220mm etc, they are same scale,only lable different. Because it can read 20mm addition for 50mm/100mm/150mm those scale, both lable linear scale total length is same.please note it. Package includes Linear scale x 1 piece Scale dust cover x 1 piece Mounting L bracket x 1 piece Screws x 1 bag

• 1. Our Linear Scale features a grating pitch of 0.02mm (50LP/min), ensuring high accuracy for all your measurement needs
• 2. With a cable length of 3 meters, this Linear Scale provides flexibility and convenience for various applications in tight spaces or larger setups

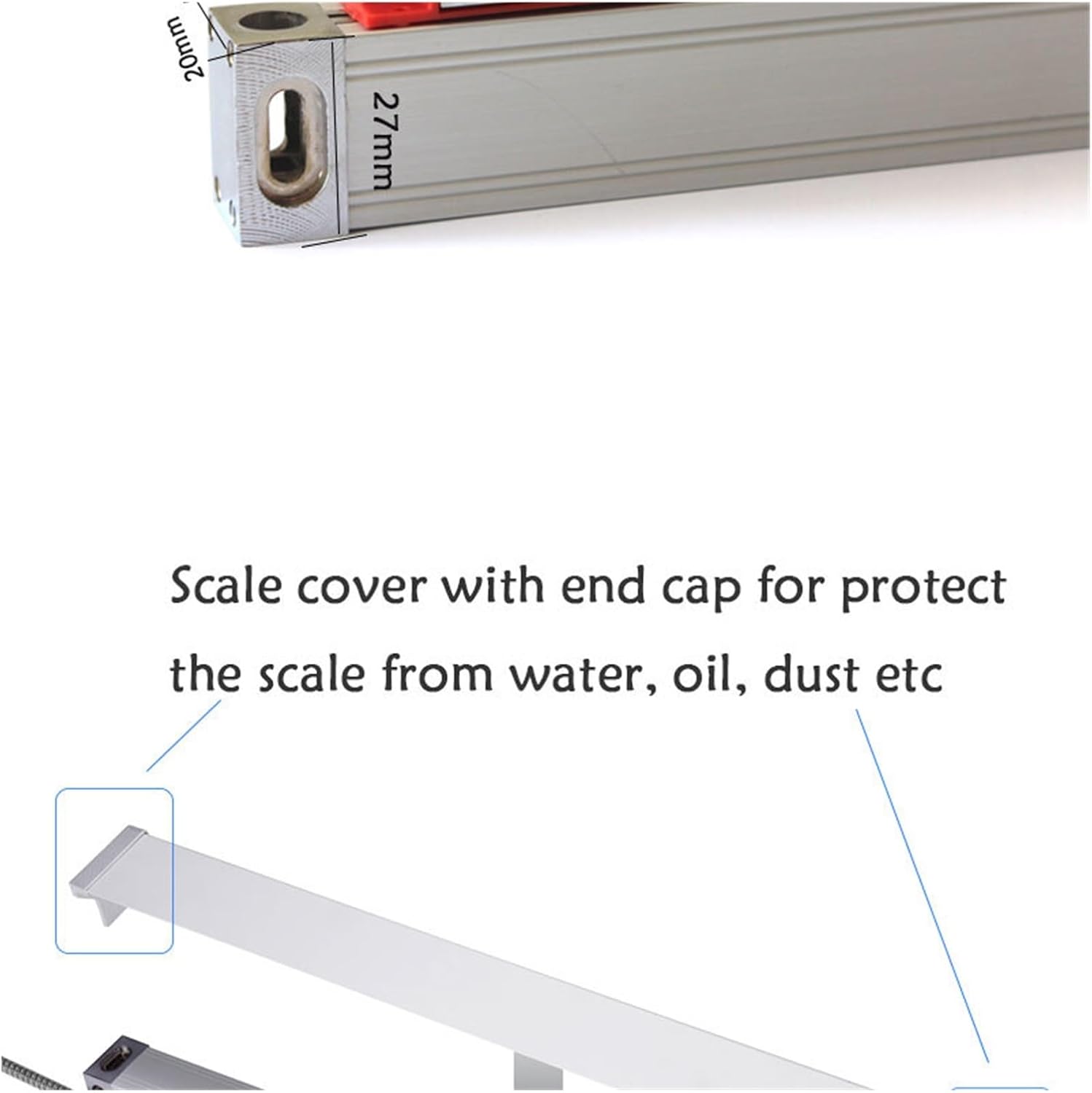

• 3. The normal scale dimension of 20*28mm makes the Linear Scale easy to integrate into existing equipment without compromising on performance
• 4. Achieve exceptional results with an accuracy of ±3/5/8um, making our Linear Scale for precision tasks in engineering and manufacturing
• 5. This Linear Scale is suitable for a wide range of applications, including CNC machines, milling equipment, and other machinery that requires precise linear measurements
