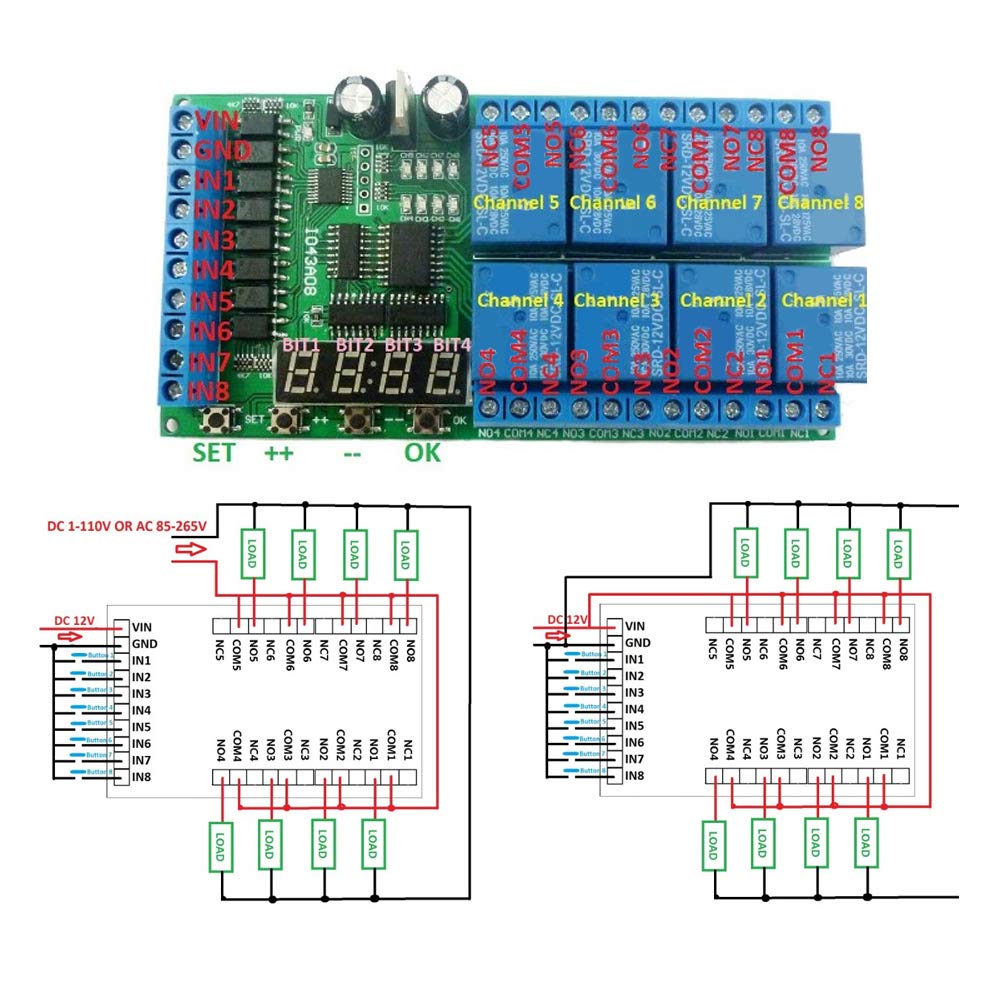

Multifunction Time Relay, Time Delay Relay Delay Relay Board DC 12V 8CH LED Multifunction Digital Delay Time Cycle Timing Relay Switch Module

Specification: Working voltage: DC 12V Maximum load :10A/250VAC,10A/125VAC,10A /30VDC, 10A/ 28VDC,10A/ 12VDC Size:12*6.4cm/4.7*2.5in Weight: Approx.132g/4.7oz User Instructions: Short press: press key time is less than 2 seconds; Long press: press key time more than 2 seconds; Status: working status , set status, power-saving status. working status : start work after powering. Displays the remaining time of 1 channel, the parameters can be displayed the "channel select" to set; Set status: short press the "SET" key to enter "channel select" Status. Short press "OK" button to exit the setting; power-saving status: in this Status,digital tubes donot display,and other features work correctly. Long press "OK" button after 5 seconds to enter power-saving status, press again "OK" button for 5 seconds or re-power to exit power-saving status. Factory settings: press and hold "++" and "--" two button for 3 seconds, to factory settings, and the digital tube will turn open . After re-power , will run default parameters. Package list: 1 x Multifunction Time Relay

• SATISFACTION GUARANTEE: We care for every customers feeling.If this product does not meet or exceed your expectations,please send it back for a refund no questions asked.
• MAXIMUM LOAD:10A/250VAC,10A/125VAC,10A /30VDC, 10A/ 28VDC,10A/ 12VDC
• FUNCTION: 6 kinds of functional modes, each functional module has three sub-modes (no cycle, 2-99 cycle, always cycle).
• SAFETY: High Q value SMD electrolytic capacitors, good responsiveness and low attenuation of in high frequency circuits.
• GOOD FEATURE: 8 channels relay,each channel independently triggered independent delay, do not interfere with each other.
